CK01 WtoW【IDC】 Waterproof Branch Type | Minebea Connect Inc.

Feature

4.4mm Pitch, 0.3sq (Ins. Dia Φ1.3～1.6), 1.25sq (Ins. Dia. Φ2.1～2.7) supported.
Supports rated current at 7A (max.), which enable to used as a power supply circuit.
Adopts IDC (Insulation Displacement Connector). Wire crimping are needless when connecting to existing wires, easy to branch wires.
Waterproof performance JIS C 0920 IP67 compliant. Waterproof design with none Crimping wires nor Retainer installation.
Highly reliable contact design in 2-contact points.
Durable lock design, applied on both sides of Connector.

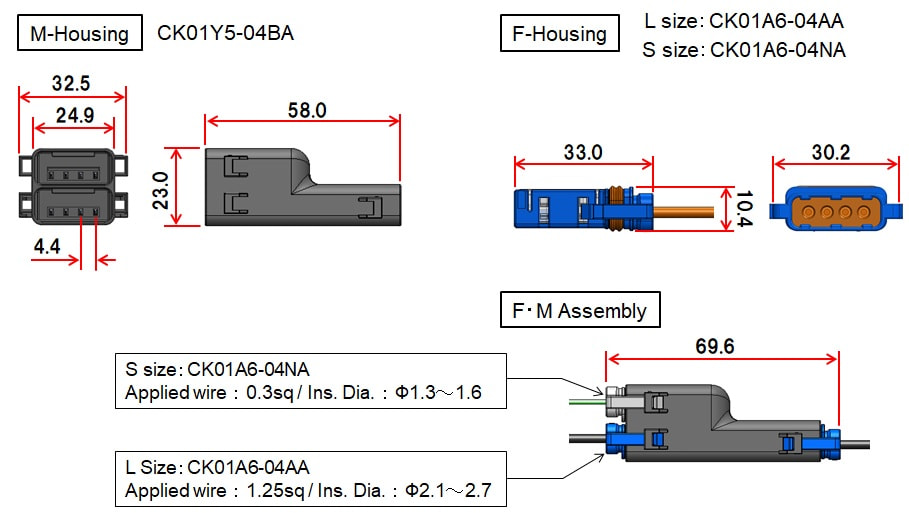

Outer Dimensions

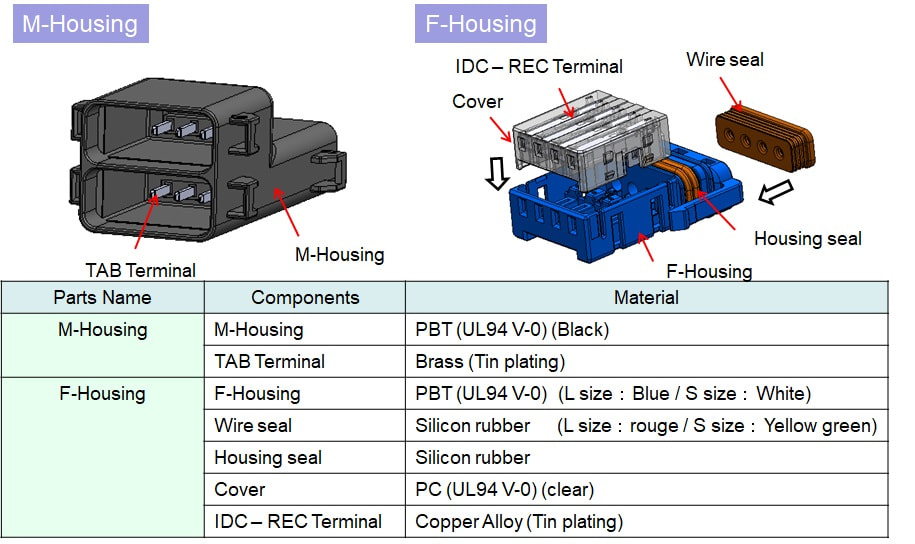

Parts and Materials

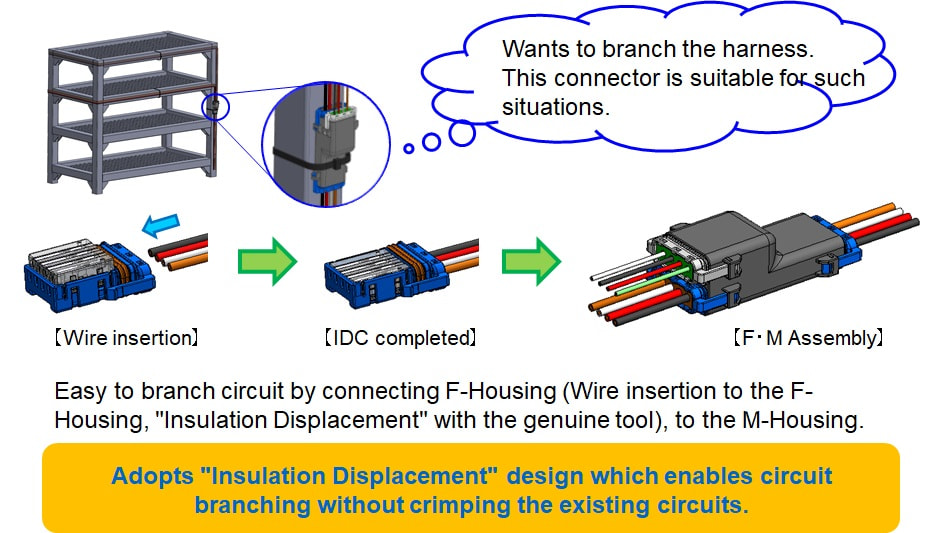

Improves circuit flexibility, IDC Waterproof Branch Connector

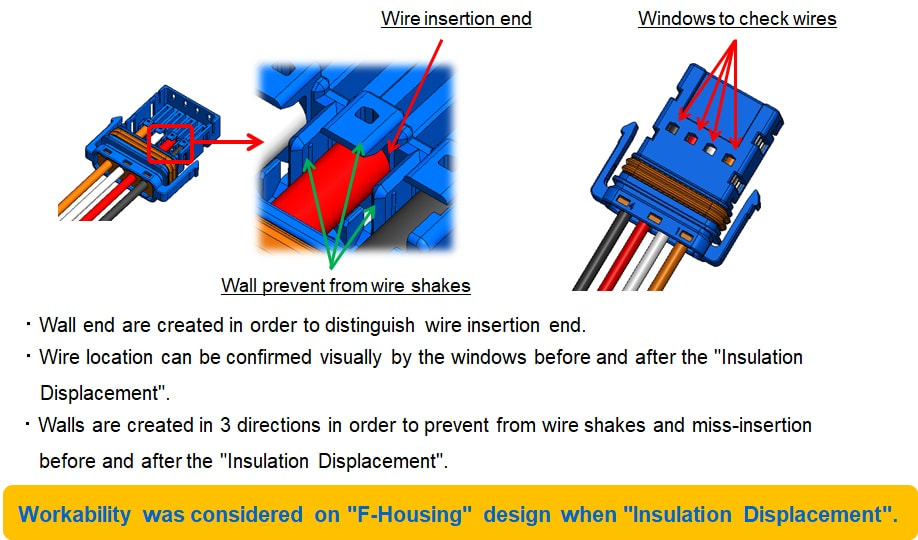

Design are considered for workability on "Insulation Displacement"

Product specifications

Connector Type	Wire to Wire Connector Horizontal (3 Way branch)
Wire installation	IDC (Insulation Displacement Connector)
Poles	4 pins
Pitch	4.4mm
Applied wire	0.3sq (Ins. Dia. Φ1.3～1.6） 1.25sq (Ins. Dia. Φ2.1～2.7）
Rated voltage	250V
Rated Current【When using 0.3sq】	Total 6A MAX
Rated Current【When using 1.25sq】	Total 9A MAX
Withstand voltage	AC1,000V r.m.s/min
Contact resistance (initial)	Below 15mΩ
Insulation resistance	Over 1000MΩ
Temperature range (including temp. rise value when energized)	-40℃～105℃
RoHS2	Supported

※For detailed specifications, please contact us.
