CJ01 WtoW Waterproof High Current Connector | Minebea Connect Inc.

Feature

5.8mm Pitch, 1.25sq ～ 5.0sq (Equivalent to AWG #16～10) supported.
Insulation Dia.：φ2.6～φ4.3 (Able to use in wide range)
High heat resistance (Temp. at 125°C supported).
Waterproof / Dustproof performance ：IP67(JIS C 0920)
High conductive materials used at Terminal achieves 30A rating.
Adopting double-sided lock structure enables Good mating sound.
Structure of Integrated wire seal and Retainer-less structure reduces man-hours.
Seal cover (under development) available to install, preventing from wire shakes.
Low insertion and withdrawal force, realization of miniaturization design compared with competitors.

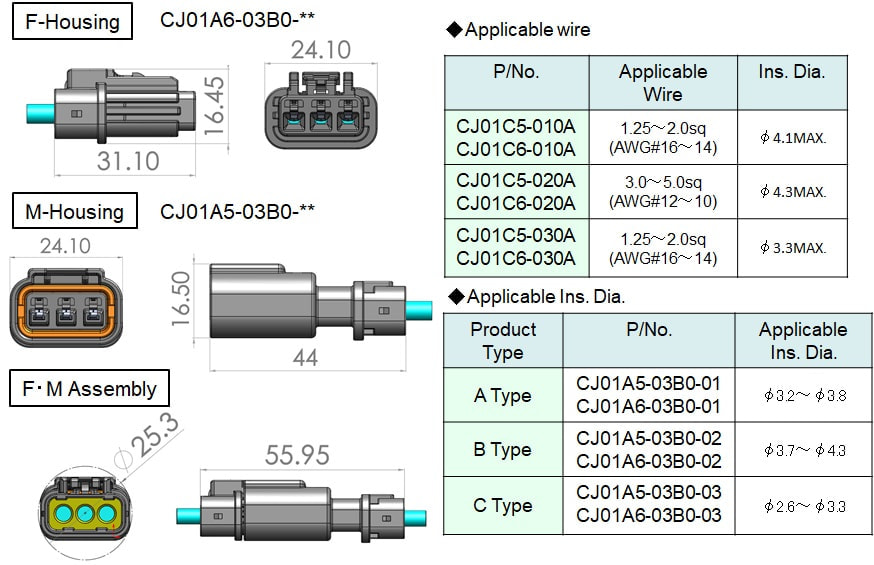

Outer Dimensions

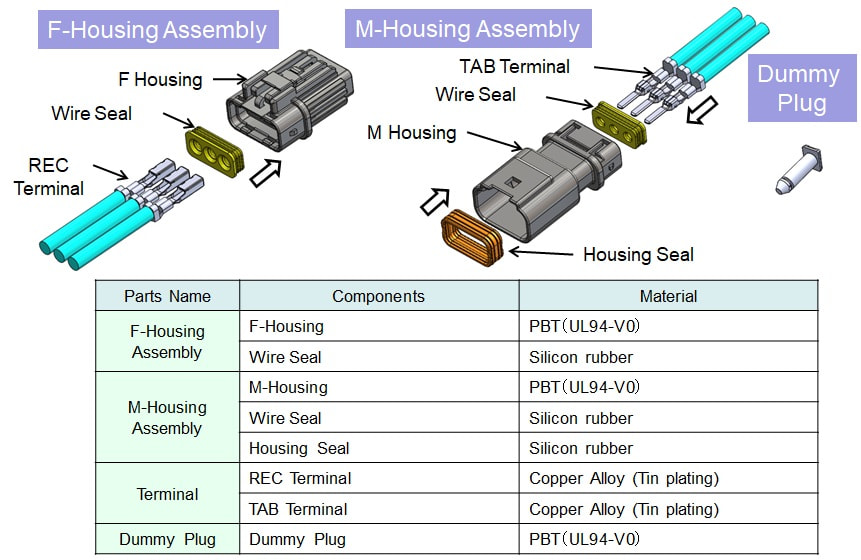

Parts and Materials

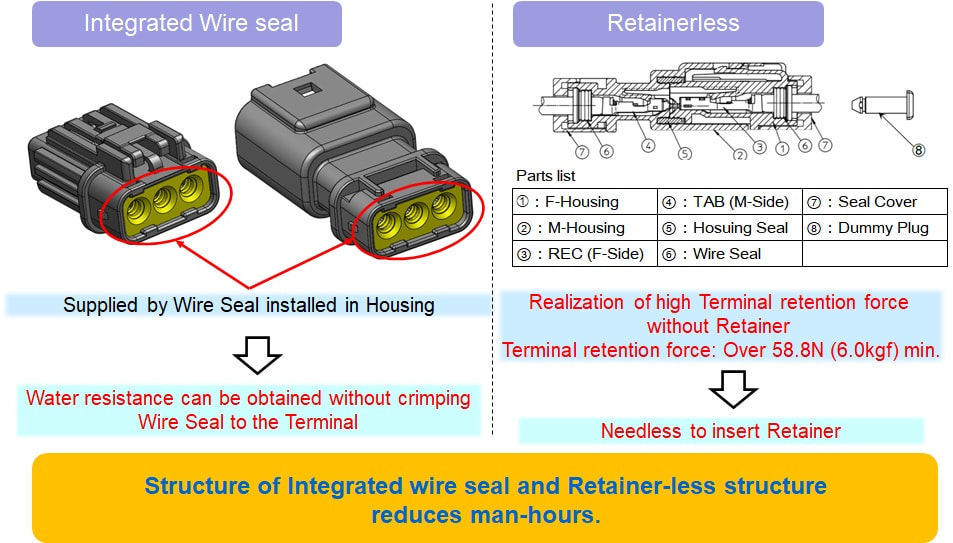

Structures in Integrated Wire seal and Retainerless

Example of use

Product specifications

Connector Type	Wire to Wire Connector
Poles	3 pins
Pitch	5.80mm
TAB size	090 size
Applied wire	1.25～5.0sq (Ins. Dia Φ 2.6～4.3）
Rated voltage	AC600V
Rated Current【Temperature rise at 40℃】	30A MAX
Rated Current【Temperature rise at 30℃】	25A MAX
Withstand voltage	AC2,200V r.m.s/min
Contact resistance (initial)	10mΩ以下
Insulation resistance	1,000MΩ以上
Temperature range(including temp. rise value when energized)	-55℃～125℃
Waterproof / Dustproof performance	IP67( Refer to JIS C 0920)
RoHS2	Supported

※For detailed specifications, please contact us.
