Research

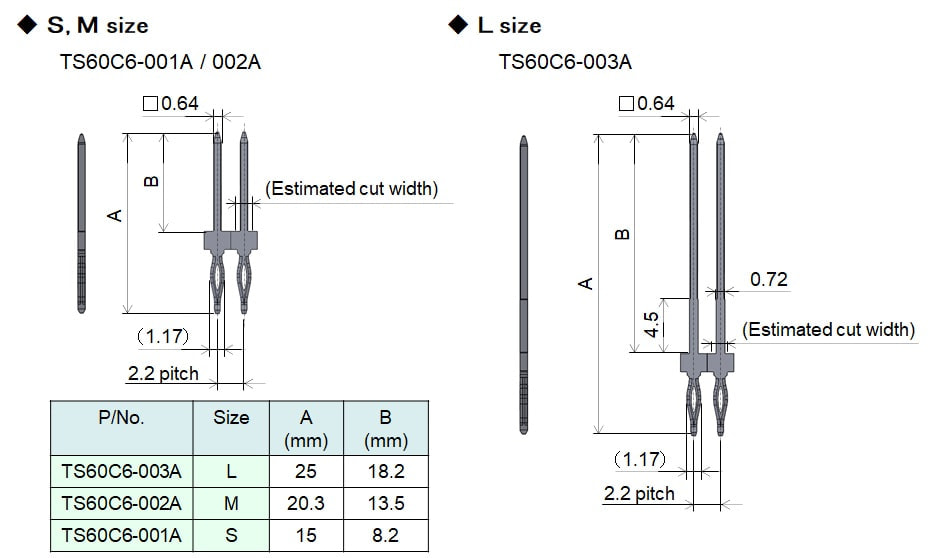

Outer Dimensions

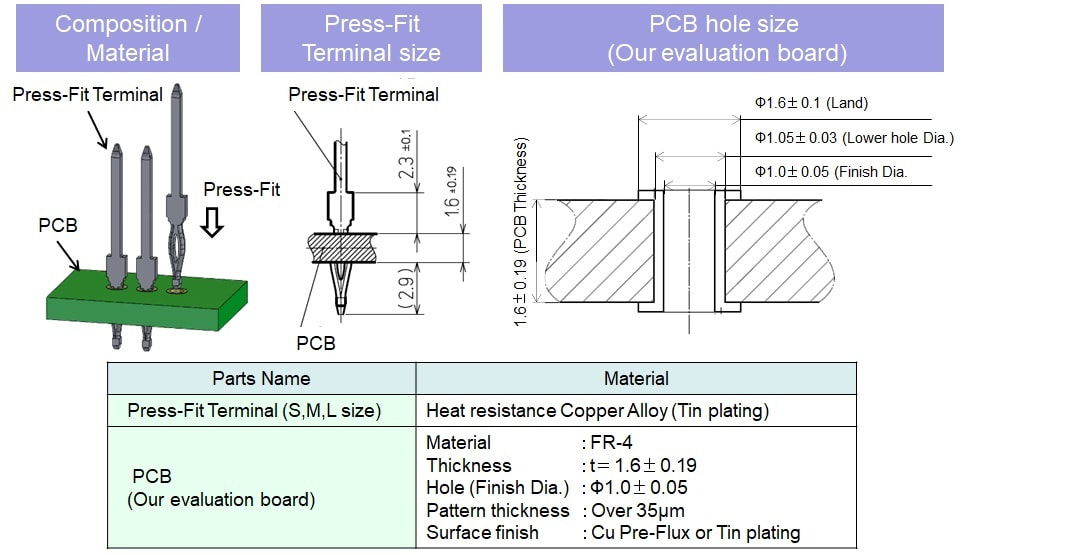

Parts and Materials／Press-fit Terminal size／PCB hole size

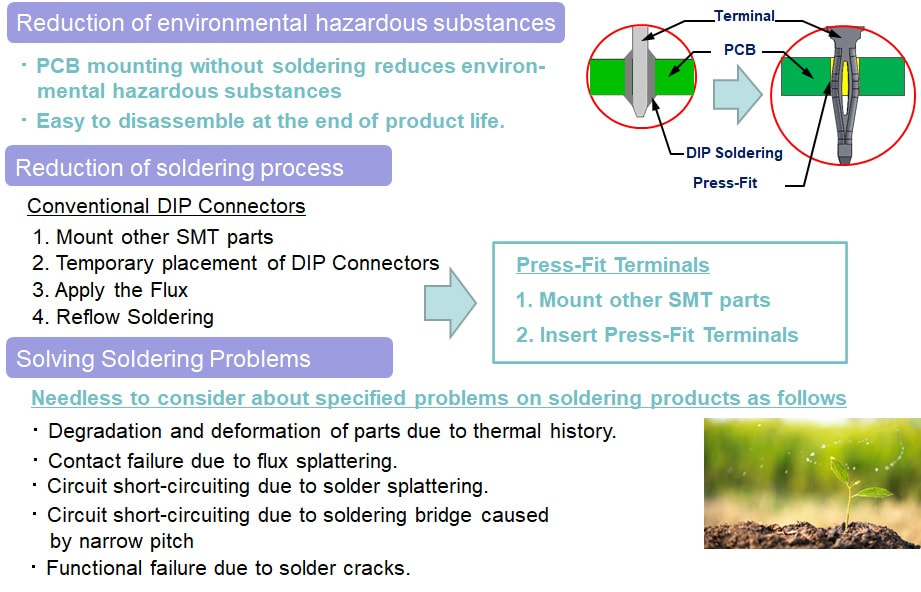

Advantage of Solder free
Example of use
Product specifications
|
PCB mounting |
Vertical |
|---|---|
|
TAB size |
025 size |
|
TAB length |
S, M, L size |
|
Pitch |
Over 2.2mm |
|
Rated voltage |
3A MAX／Terminal |
|
Contact resistance |
Below 1mΩ |
|
Temperature range (including temp. rise |
-40℃～125℃ |
|
Applicable PCB Material |
FR-4 Printed wiring board |
|
Applicable PCB Thickness |
1.6±0.19mm |
|
Applicable PCB Through hole (Lower hole Dia.) |
Φ1.05±0.03mm |
|
Applicable PCB Through hole (Finish Dia.) |
Φ1.00±0.05mm |
|
Applicable PCB Surface finish |
Cu pre-Flux or Tin plating (1~2μm) |
|
Mounting process |
Press-Fit connection |
|
Terminal Surface finish |
Tin plating |
|
RoHS2 |
Supported |
※For detailed specifications, please contact us.
