LH series 2.50mm,FPC:RoHS2

LH01 FPC Automotive Connector

　　

Feature

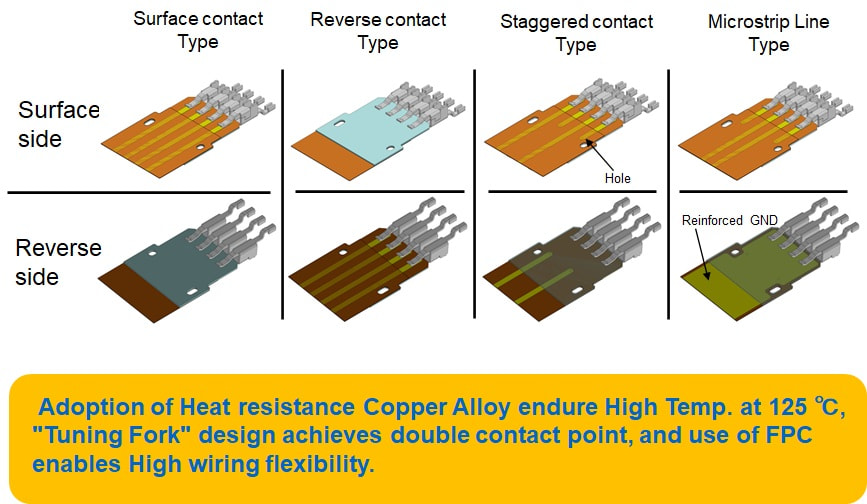

  1. Adoption of "Tuning Fork" design on Contact.(FPC available at double side, High wiring flexibility) ​
  2. High heat resistance (Temp. range 125 ℃ supported)

  3. Adoption of "Side Retainer System" on Retainer (Simplifies assemble work)

  4. Two types of “ Key system " are designed on Housing and Pin-Block  (By different application and prevention from incorrect insertion).

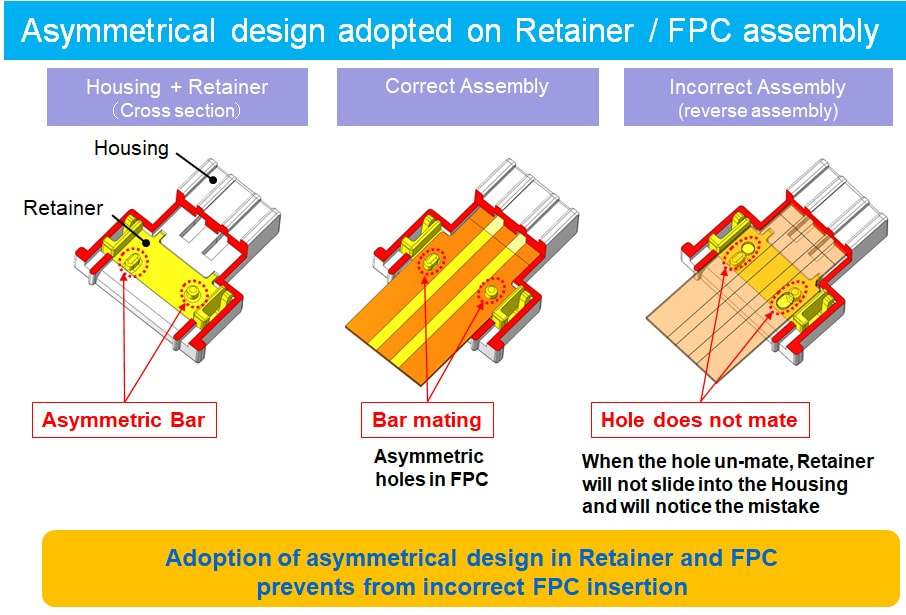

  5. Adoption of asymmetric design (FPC punch hole mate with Retainer bar) on Retainer and FPC. (Prevent from incorrect FPC insertion)​

  6. Adoption of "Inertial Lock" design (Prevent from half mating)​

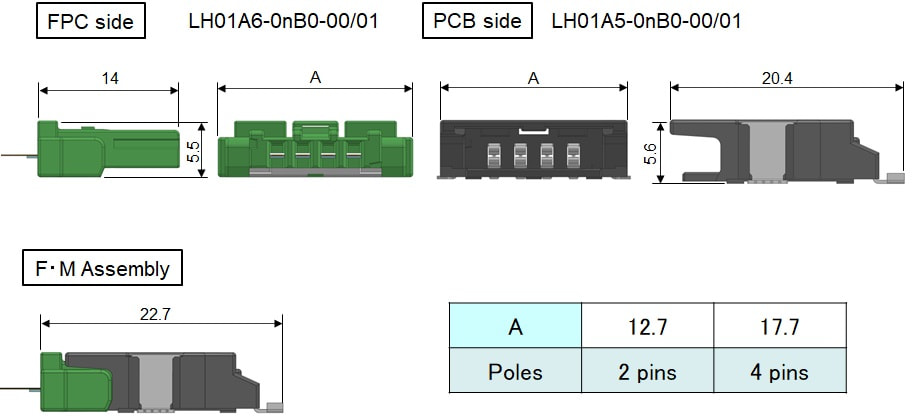

Outer Dimensions

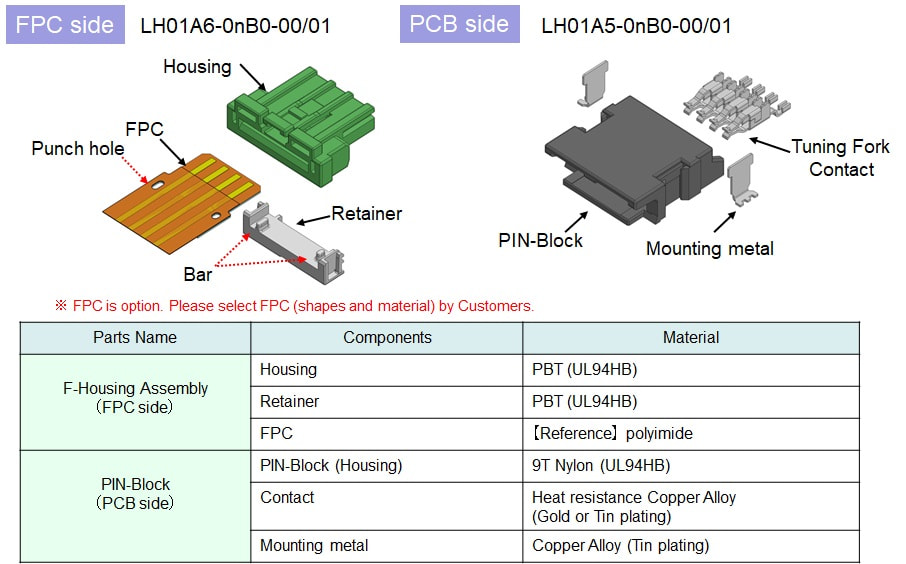

Parts and Materials

Main Functions

Example of use

Product specifications

PCB mounting

Horizontal

Poles

2, 4 pins

Pitch

2.5mm

Applied FPC thickness

0.3mm（At conductor part）

Rated voltage

AC100V r.m.s

Rated Current

2A MAX

Withstand voltage

AC1,000V r.m.s/min

Contact resistance (initial)

Below 10mΩ

Insulation resistance

Over 100MΩ

Temperature range (including temp. rise value when energized)

-40℃～125℃

RoHS2

Supported（On Connector part）

※For detailed specifications, please contact us.
