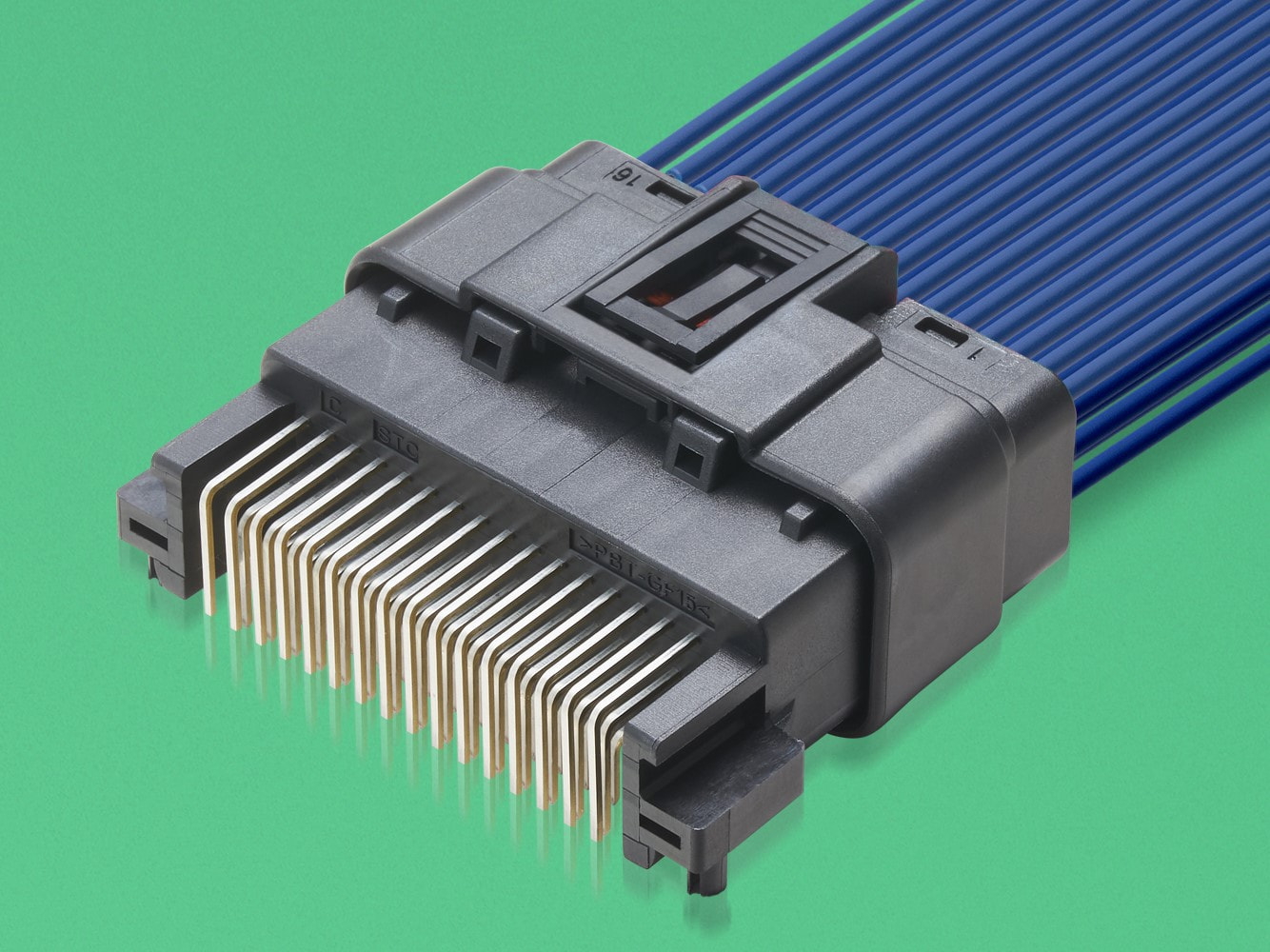

KB01 WtoB(Waterproof) Automotive Connector

　　

Feature

  1. 2.55mm Pitch、0.5～0.85sq （Insulation Dia φ1.5～1.9mm） supported

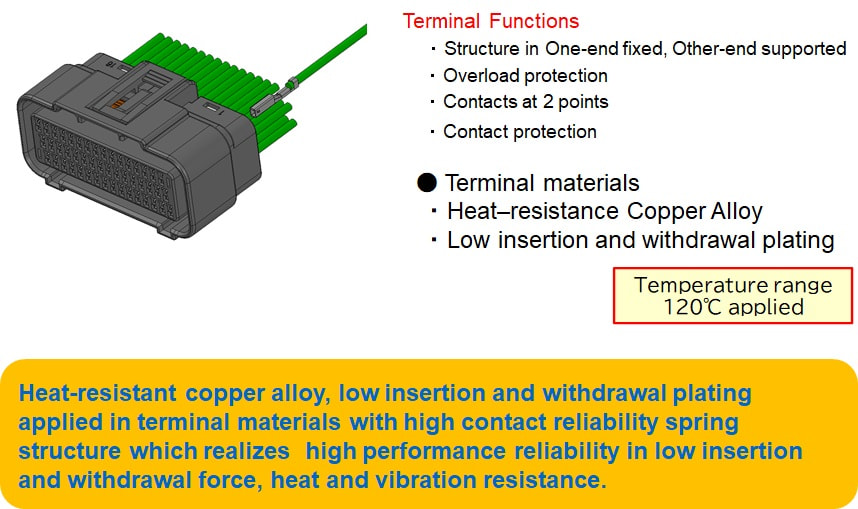

  2. Terminal structure made by low insertion and withdrawal force which enables high contact reliability.

  3. None-Lock lever structure enables compact design and low-cost component configuration.

  4. Waterproof performance JIS D 0203 S2 class (equivalent to IP67), needless to crimp wire seals or install retainers.

  5. Seal cover installed standard to prevent from wire shake.​

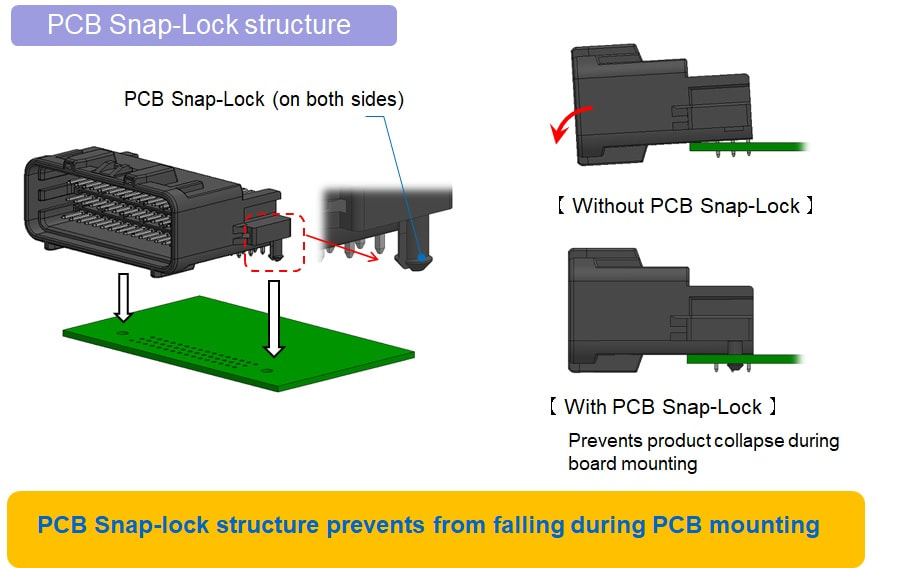

  6. "Snap-fit lock design" on Pin-Block enables stabilizes posture when mounting to PCB.
  7. Pin-block able to support "Potting".

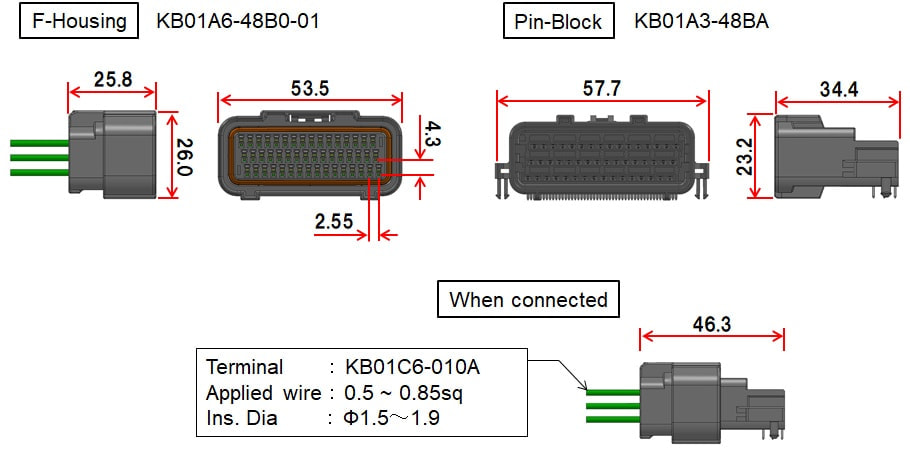

Outer Dimensions​

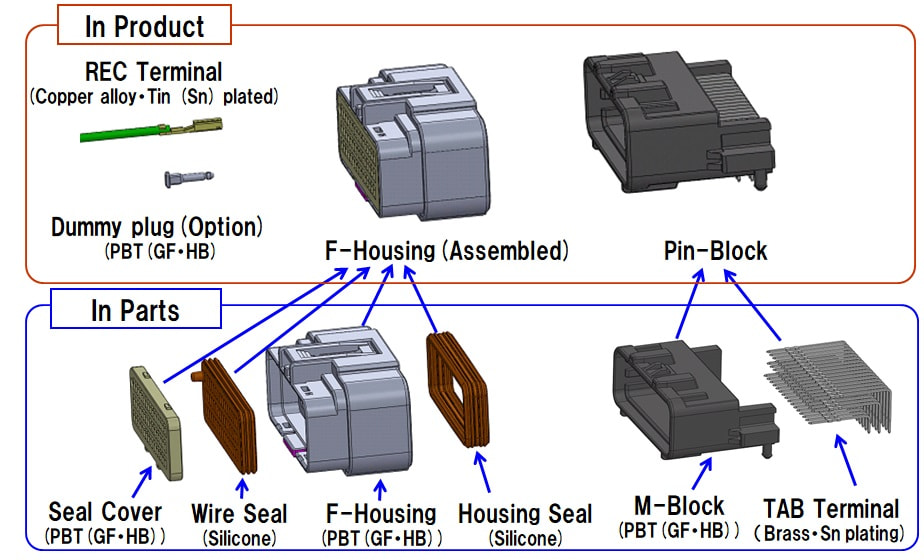

Parts and Materials

Main Functions

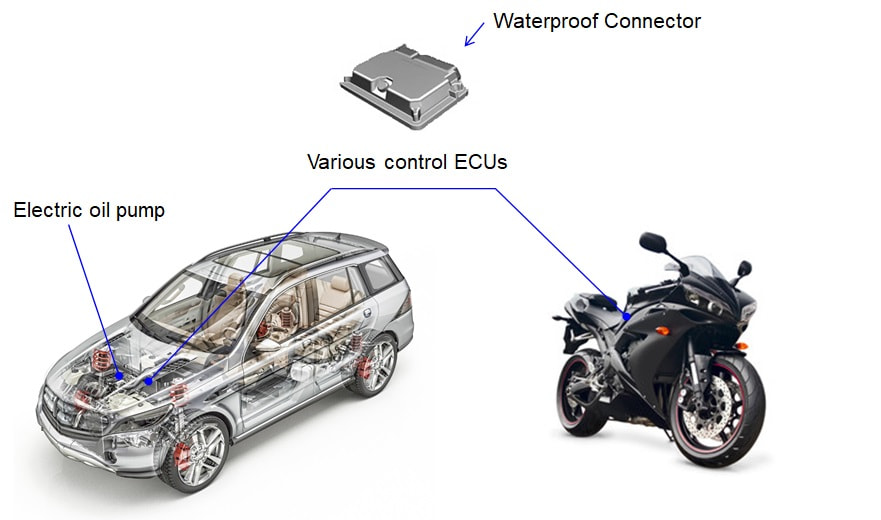

Example of use

Product Specifications

PCB installation

Horizontal

Poles

48 pins

Pitch

2.55mm×4.3mm

TAB size

025 size

Applied wire

0.5～0.85sq (Ins. Dia Φ1.5～1.9)

Rated voltage

DC50V

Rated Current(power pole)

4A MAX

Rated Current(Signal pole)

1A MAX

Withstand voltage

AC1,000V r.m.s/min

Contact resistance (initial)

Below 20mΩ

Insulation resistance

Over 100MΩ

Temperature range

(including temperature rise value when energized)

-40℃～120℃

RoHS2

Supported

※For detailed specifications, please contact us.
