KA series 2.00mm,WtoB:RoHS2

KA12 WtoB Automotive Connector

　　

Feature

  1. 2.0mm pitch, AESSX0.5sq ( Ins. Dia.φ1.7mm MAX.) applied and World's smallest.
  2. Adoption of DIP Type mounting metal at KA12 Series assures firm solder mounting.
  3. Terminal design with high contact reliability.

  4. High heat resistance. (Temp. range 125 ℃ supported)

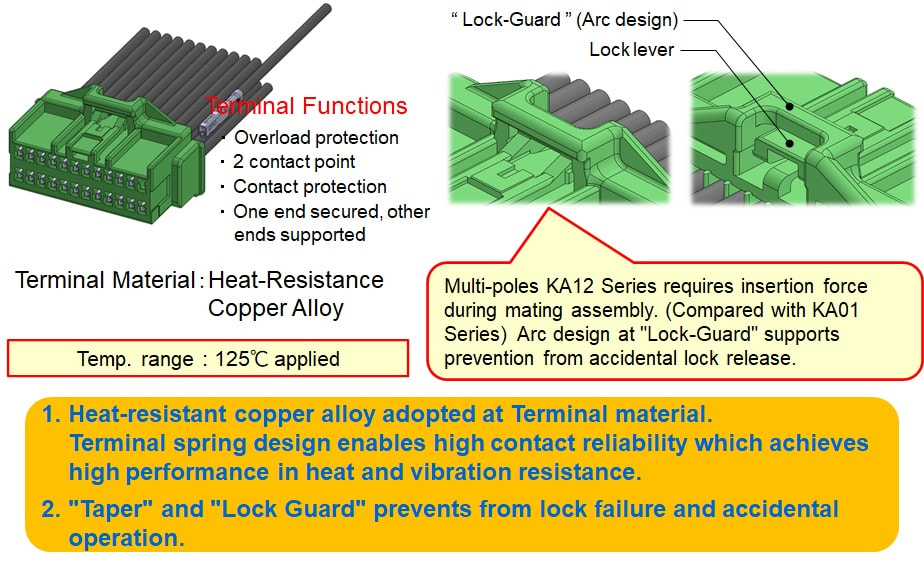

  5. Adoption of "Inertial Lock" design. (KA12 Series, half mating prevention)

  6. "Lock Guard" design adopted for lock protection. (Prevent from accidental operation)

  7. Adoption of "Side-Retainer" enables double locking system.

    (Secures Terminal retention force and prevention of half insertion at Terminal)

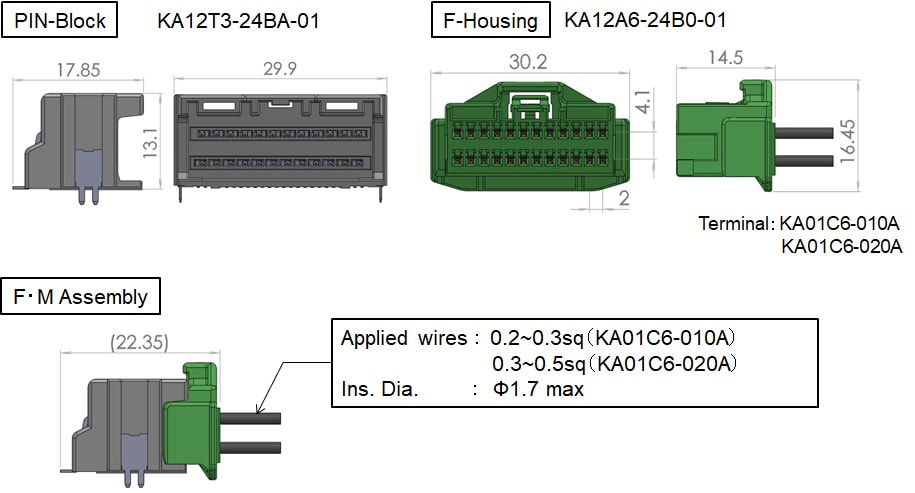

 Outer Dimensions

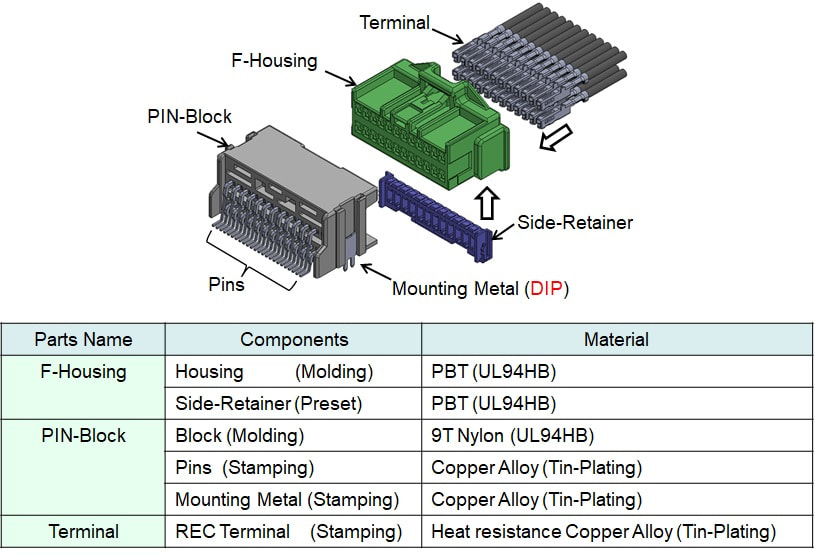

Parts and Materials

Main Functions

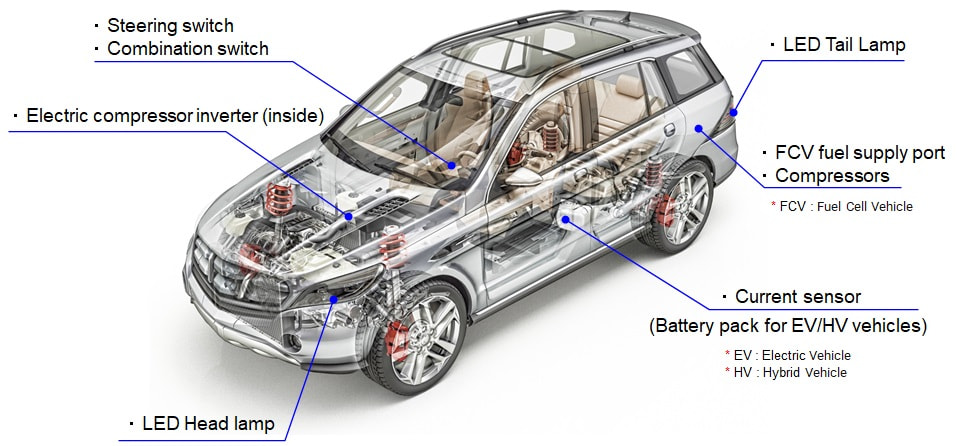

Example of use

Product Specifications

PCB mounting​

 Horizontal​
Poles 24 pins​
Pitch 2.0mm​
TAB size 025 size​

Applied wire

 0.2～0.5sq (Ins. Dia.Φ 1.7 MAX)

Rated voltage​

 AC100V r.m.s​

Rated Current​

 3A MAX​

Withstand voltage​

 AC1,000V r.m.s/min ​

Contact resistance (initial)​

 Below 5mΩ​

Insulation resistance​

 Over 100MΩ​

Temperature range (including temp. rise
value when energized)

 -40℃～125℃​

Automobile Standards

 JASO standard compliant
RoHS2​ Supported​

※For detailed specifications, please contact us.
