KA series 2.00mm,WtoB:RoHS2

KA01 WtoB Automotive Connector

　　

Feature

  1. 2.0mm pitch, AESSX0.5sq ( Ins. Dia.φ1.7mm MAX.) applied and World's smallest.
  2. Terminal design with high contact reliability.

  3. High heat resistance. (Temp. range 125 ℃ supported)

  4. "Lock Guard" design adopted for lock protection. (Prevent from accidental operation)

  5. Adoption of "Side-Retainer" enables double locking system.

    (Secures Terminal retention force and prevention of half insertion at Terminal)

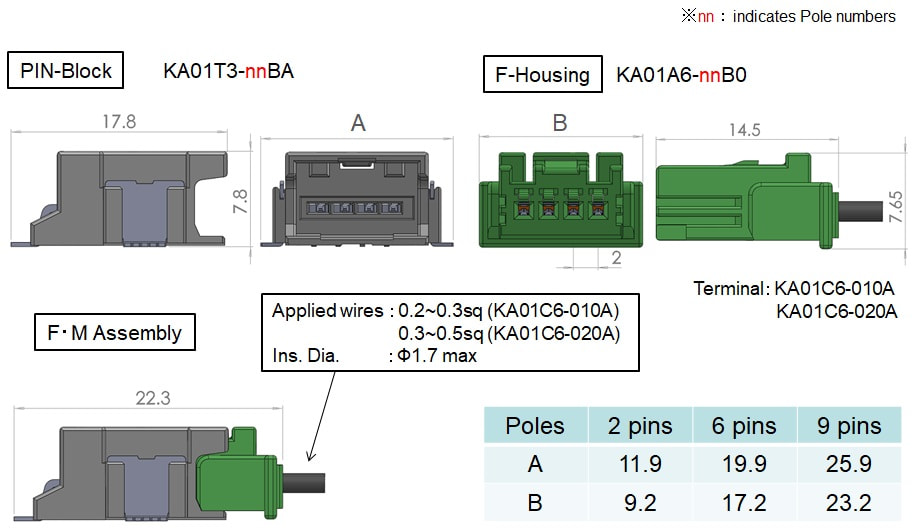

Outer Dimensions

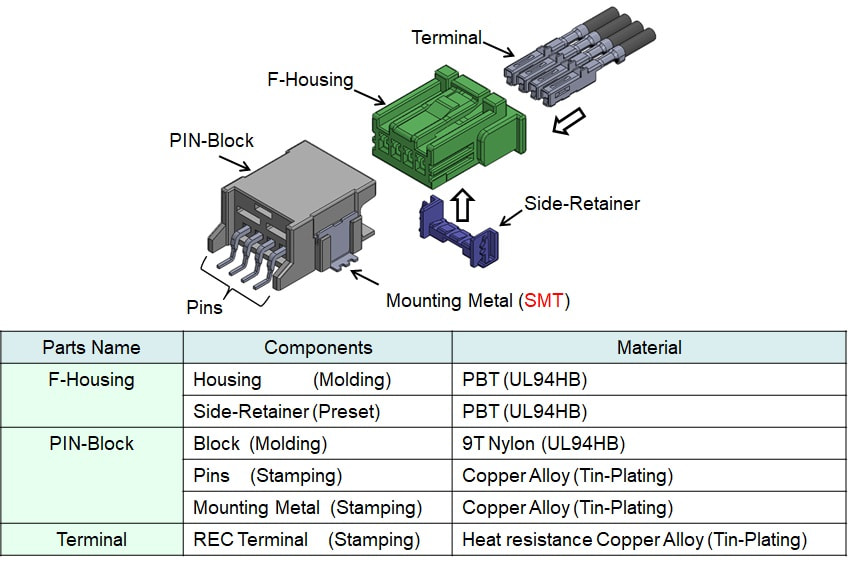

Parts and Materials

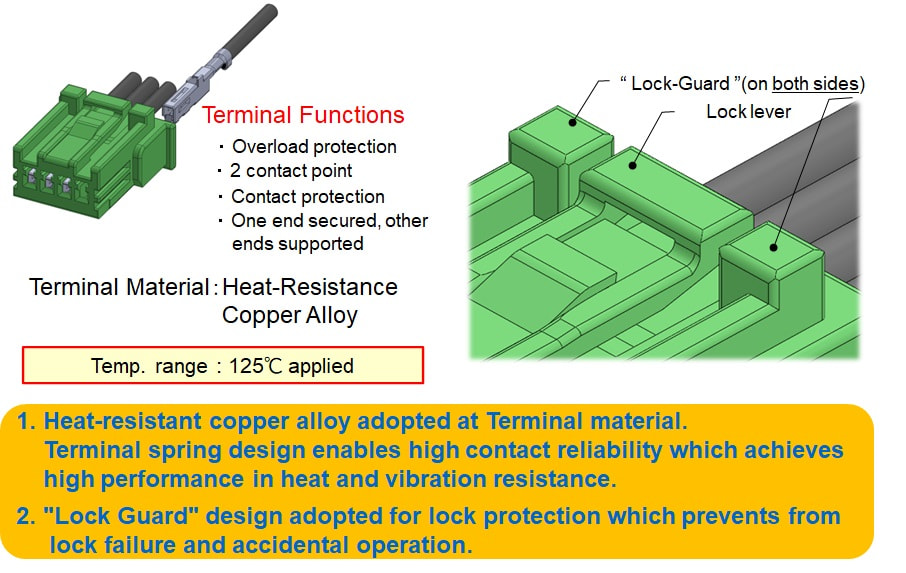

Main Functions

Example of use

Product Specifications

PCB mounting​

Horizontal​
Poles​ 2, 6, 9 pins​
Pitch​ 2.0mm​
TAB size 025 size​

Applied wire

0.2～0.5sq (Ins. Dia.Φ 1.7 MAX)

Rated voltage​

 AC100V r.m.s​

Rated Current​

 4A MAX​

Withstand voltage​

 AC1,000V r.m.s/min ​

Contact resistance (initial)​

 Below 5mΩ​

Insulation resistance​

 Over 100MΩ​

Temperature range (including temp. rise
value when energized)

 -40℃～125℃​

Automobile Standards

JASO standard compliant
RoHS2​

Supported​

※For detailed specifications, please contact us.
