1. Direct connection to PCB. (No process needed for mounting parts on PCB, reduce parts quantities

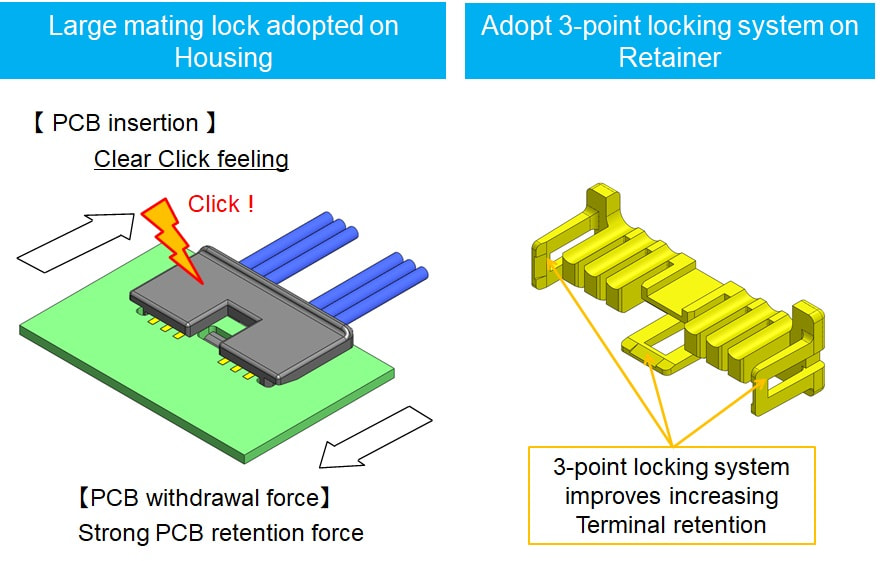

  2. Large mating lock adopted on Housing. (Prevent from half-mating and increases PCB retention force)

  3. Adoption of asymmetric design on PCB insertion entrance at Housing. (Prevent from incorrect PCB insertion/Protects Terminals)

  4. Adopt 3-point locking system on Retainer. (Increase retention force against Terminal) ​
  5. Adoption of "Offset" and "Separate" design on Terminal contact point. (contact protection/endure vibration)

  6. High heat resistance. (Temp. range 125 ℃ supported)​

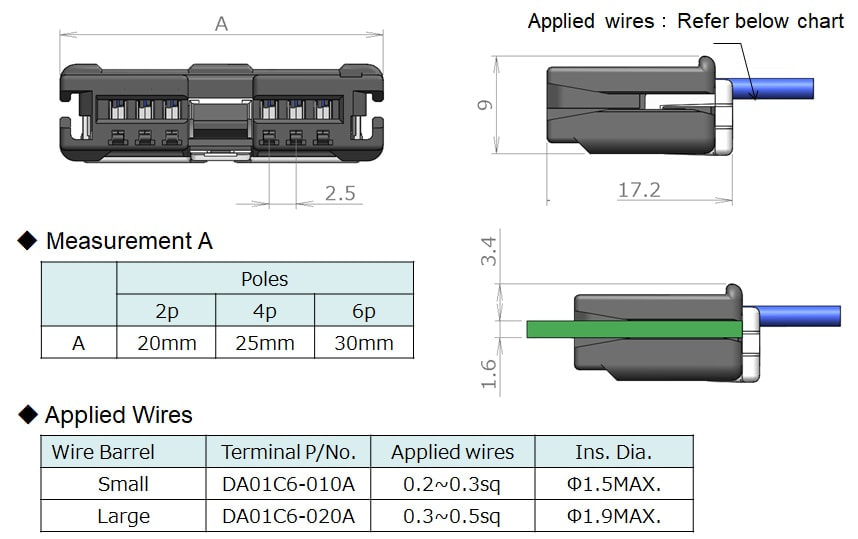

Outer Dimensions

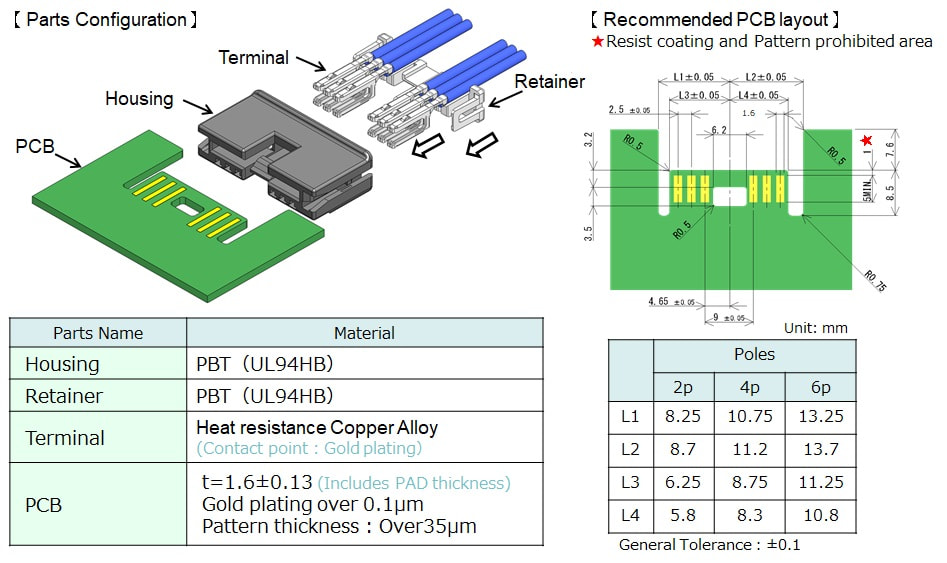

Parts and Materials/Recommended PCB layout

Main Functions

Example of use

Product specifications

PCB mounting


Poles 2, 4, 6 pins ※6 pins:under development.
Pitch 2.5mm

Standard PCB thicknes


Applied wire

Wire Barrel Small:0.18~0.3sq (Ins. Dia. φ1.6 MAX)

Wire Barrel Large:0.3~0.5sq (Ins. Dia. φ2.0 MAX)

Rated voltage

AC100V r.m.s

Rated Current

4A MAX (using 2-pins 0.5sq)

Withstand voltage

AC1,000V r.m.s/min

Contact resistance (initial)

Below 5mΩ (※Except conductor resistance)

Insulation resistance

Over 100MΩ

Temperature range (including temperature rise value when energized)



※For detailed specifications, please contact us.
